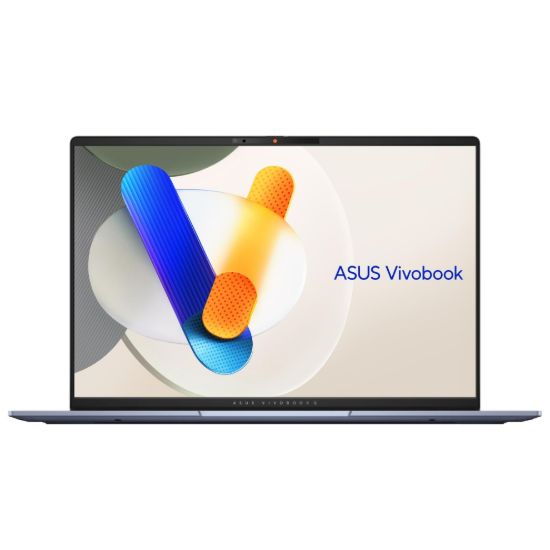

ASUS VivoBook S 16 OLED S5606CA-RI069W 16" - Intel Core Ultra u7-255H, RAM 16GB, SSD 1TB, Intel Arc Graphics

Packaging content

• AC adapter included: Yes

General

• Summary: ASUS Vivobook S 16 OLED S5606CA-RI069W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 40.6 cm (16"), HD type: 3K, Display resolution: 2880 x 1800 pixels. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Home. Product colour: Blue. Weight: 1.5 kg
• NB Family name: VivoBook S

Weight & dimensions

• Depth: 246.9 mm
• Height (front): 1.39 cm mm
• Height (rear): 1.59 cm mm
• Weight: 1.5 kg
• Width: 353.6 mm

Sustainability

• Sustainability certificates: ENERGY STAR

Certificates

• Compliance certificates: REACH

Security

• Trusted Platform Module (TPM): Yes
• Windows Hello: Yes

Power

• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• AC adapter output current: 3.25 A
• AC adapter output voltage: 20 V
• AC adapter power: 65 W
• USB Power Delivery (USB PD): Yes
• USB Type-C charging port: Yes

Battery

• Battery capacity: 75 Wh
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4

Software

• Operating system architecture: 64-bit
• Operating system installed: Windows 11 Home
• Trial software: 1-month trial for new Microsoft 365 customers. Credit card required.

Keyboard

• Keyboard backlit: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 1-zone RGB
• Numeric keypad: Yes
• Pointing device: Touchpad

Performance

• Repairability index: 9

Ports & interfaces

• Combo headphone/mic port: Yes
• HDMI ports quantity: 1
• HDMI version: 2.1
• Intel® Thunderbolt 4: Yes
• Thunderbolt 4 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB Type-C DisplayPort Alternate Mode: Yes

Network

• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)

Camera

• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter

Audio

• Audio system: Smart Amp
• Built-in microphone: Yes
• Speakers manufacturer: Harman Kardon

Graphics

• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T

Storage

• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)
• M.2 SSD size: 2280 (22 x 80 mm)
• Number of SSDs installed: 1
• NVMe: Yes
• Optical drive type: No
• SSD capacity: 1 TB GB
• SSD form factor: M.2
• SSD interface: PCI Express 4.0
• Storage media: SSD
• Total SSDs capacity: 1 TB GB
• Total storage capacity: 1 TB GB

Memory

• Internal memory: 16 GB
• Internal memory type: LPDDR5x-SDRAM
• Maximum internal memory: 16 GB
• Memory form factor: On-board

Neural processor unit (NPU)

• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
• GPU performance up to: 74 TOPs
• Neural processor unit (NPU): Intel AI Boost
• NPU performance up to: 13 TOPs
• Sparsity support: Yes
• Total processor performance up to: 96 TOPs
• Windows Studio effects support: Yes

Design

• Colour name: Mist Blue
• Form factor: Clamshell
• Housing material: Aluminium
• Market positioning: Home
• Product colour: Blue
• Product type: Laptop

Display

• Colour gamut: 100%
• Contrast ratio (typical): 1000000:1
• Display brightness: 400 cd/m²
• Display diagonal: 40.6 cm (16")
• Display number of colours: 1.07 billion colours
• Display resolution: 2880 x 1800 pixels
• Display surface: Gloss
• HD type: 3K
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 600
• Maximum display brightness (HDR): 600 cd/m²
• Maximum refresh rate: 120 Hz
• Native aspect ratio: 16:10
• Panel type: OLED
• RGB colour space: DCI-P3
• Touchscreen: No

Processor

• Efficient cores: 8
• Efficient-core base frequency: 1.5 GHz
• Efficient-core Max Turbo Frequency: 4.4 GHz
• Low Power Efficient-core Base Frequency: 700 MHz
• Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
• Low Power Efficient-cores: 2
• Maximum turbo power: 115 W
• Performance cores: 6
• Performance-core base frequency: 2 GHz
• Performance-core Max Turbo Frequency: 5.1 GHz
• Processor base power: 28 W
• Processor boost frequency: 5.1 GHz
• Processor cache: 24 MB
• Processor cores: 16
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor manufacturer: Intel
• Processor model: 255H
• Processor threads: 16
