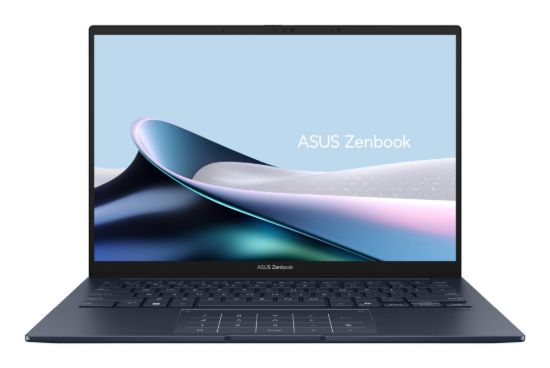

ASUS ZenBook Series 14 OLED UX3405CA-PZ217W 14" - Intel Core Ultra u7-255H, RAM 32GB, SSD 1TB, Intel Arc Graphics

General

• Additional model naming: UX3405CA-PZ217W
• Summary: ASUS Zenbook 14 OLED UX3405CA-PZ217W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Home. Product colour: Blue
• NB Family name: ZenBook Series

Packaging content

• AC adapter included: Yes
• Bag included: Yes
• Stylus pen: Yes

Weight & dimensions

• Depth: 220.1 mm
• Height: 14.9 mm
• Weight: 1.28 kg
• Width: 312.4 mm

Sustainability

• Sustainability certificates: ENERGY STAR, EPEAT Gold

Certificates

• Compliance certificates: REACH

Security

• Face recognition: Yes
• Trusted Platform Module (TPM): Yes
• Windows Hello: Yes

Power

• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• AC adapter output current: 3.25 A
• AC adapter output voltage: 20 V
• AC adapter power: 65 W
• USB Power Delivery (USB PD): Yes
• USB Type-C charging port: Yes

Battery

• Battery capacity: 75 Wh
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4

Software

• Bundled software: One-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2025.
• Operating system architecture: 64-bit
• Operating system installed: Windows 11 Home
• Trial software: 1-month trial for new Microsoft 365 customers

Keyboard

• Keyboard backlit: Yes
• Numeric keypad: No
• Pointing device: NumberPad

Performance

• Repairability index: 9.3

Ports & interfaces

• Combo headphone/mic port: Yes
• HDMI ports quantity: 1
• HDMI version: 2.1
• Intel® Thunderbolt 4: Yes
• Thunderbolt 4 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB Type-C DisplayPort Alternate Mode: Yes

Network

• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• Ethernet LAN: No
• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)

Camera

• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080 pixels
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter

Audio

• Audio system: Smart Amp
• Built-in microphone: Yes

Graphics

• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T

Storage

• Number of SSDs installed: 1
• NVMe: Yes
• Optical drive type: No
• SSD capacity: 1 TB GB
• SSD form factor: M.2
• SSD interface: PCI Express 4.0
• Storage media: SSD
• Total SSDs capacity: 1 TB GB
• Total storage capacity: 1 TB GB

Memory

• Internal memory: 32 GB
• Internal memory type: LPDDR5x-SDRAM
• Maximum internal memory: 32 GB
• Memory channels: Dual-channel
• Memory form factor: On-board

Neural processor unit (NPU)

• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
• GPU performance up to: 74 TOPs
• Neural processor unit (NPU): Intel AI Boost
• NPU performance up to: 13 TOPs
• Sparsity support: Yes
• Total processor performance up to: 96 TOPs
• Windows Studio effects support: Yes

Design

• Colour name: Ponder Blue
• Form factor: Clamshell
• Housing material: Aluminium
• Introduction year: 2025
• Market positioning: Home
• Product colour: Blue
• Product type: Laptop

Display

• Colour gamut: 100%
• Contrast ratio (typical): 1000000:1
• Display brightness: 400 cd/m²
• Display diagonal: 35.6 cm (14")
• Display number of colours: 1.07 billion colours
• Display resolution: 2880 x 1800 pixels
• Display response rise/fall: 0.2 ms
• Display surface: Gloss
• HD type: WUXGA
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: HDR True Black 500
• Low Blue Light technology: Yes
• Maximum display brightness (HDR): 500 cd/m²
• Maximum refresh rate: 120 Hz
• Native aspect ratio: 16:10
• Panel type: OLED
• RGB colour space: DCI-P3
• Touchscreen: Yes

Processor

• Efficient cores: 8
• Efficient-core base frequency: 1.5 GHz
• Efficient-core Max Turbo Frequency: 4.4 GHz
• Low Power Efficient-core Base Frequency: 700 MHz
• Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
• Low Power Efficient-cores: 2
• Maximum turbo power: 115 W
• Performance cores: 6
• Performance-core base frequency: 2 GHz
• Performance-core Max Turbo Frequency: 5.1 GHz
• Processor base power: 28 W
• Processor boost frequency: 5.1 GHz
• Processor cache: 24 MB
• Processor cores: 16
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor manufacturer: Intel
• Processor model: 255H
• Processor threads: 16
