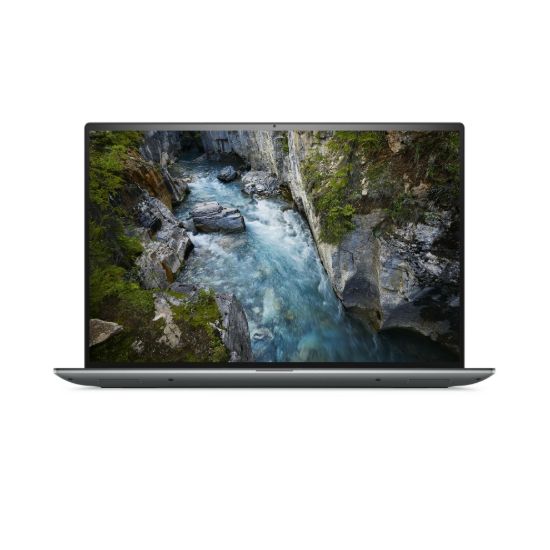

DELL Precision 5490 14" - Core Ultra u7-155H, RAM 16GB, SSD 1TB, Nvidia RTX 1000 Ada 6GB

Packaging content

• Cables included: AC

Carbon footprint

• Carbon emissions, end-of-life (kg of CO2e): 1.725
• Carbon emissions, energy usage (kg of CO2e): 20.24
• Carbon emissions, logistics (kg of CO2e): 5.865
• Carbon emissions, manufacturing (kg of CO2e): 87.285
• PAIA version: GaBi version 1, 2024
• Total carbon emissions, w/o use phase (kg of CO2e): 94.76
• Total carbon footprint (kg of CO2e): 115

General

• Summary: DELL Precision 5490. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 155H. Display diagonal: 35.6 cm (14"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA RTX 1000 Ada. Operating system installed: Windows 11 Pro. Product colour: Grey
• NB Family name: Precision

Weight & dimensions

• Depth: 210.3 mm
• Height (front): 7.49 mm
• Height (rear): 1.9 cm mm
• Weight: 1.49 kg
• Width: 310.6 mm

Sustainability

• Sustainability certificates: ENERGY STAR, TCO
• Sustainability compliance: Yes

Operational conditions

• Non-operating altitude: -15.2 - 10668 m
• Non-operating shock: 160 G
• Non-operating vibration: 1.3 G
• Operating altitude: -15.2 - 3048 m
• Operating relative humidity (H-H): 10 - 90%
• Operating shock: 110 G
• Operating temperature (T-T): 0 - 35 °C
• Operating vibration: 0.66 G
• Storage relative humidity (H-H): 0 - 95%
• Storage temperature (T-T): -40 - 65 °C

Security

• Cable lock slot: Yes
• Cable lock slot type: Wedge
• Fingerprint reader: Yes
• Password protection: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0

Power

• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• AC adapter power: 130 W
• USB Power Delivery (USB PD): Yes
• USB Type-C charging port: Yes

Battery

• Battery capacity: 72 Wh
• Battery recharge time: 4 h
• Battery voltage: 15.4 V
• Battery weight: 285 g
• Fast charging: Yes
• Number of battery cells: 4

Software

• Operating system architecture: 64-bit
• Operating system installed: Windows 11 Pro

Keyboard

• Keyboard backlit: Yes
• Numeric keypad: No
• Pointing device: Touchpad

Performance

• Accelerometer: Yes
• Ambient light sensor: Yes
• Hall sensor: Yes

Ports & interfaces

• Combo headphone/mic port: Yes
• Intel® Thunderbolt 4: Yes
• Thunderbolt 4 ports quantity: 4
• USB Type-C DisplayPort Alternate Mode: Yes

Network

• Antenna type: 2x2
• Bluetooth: Yes
• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 7 BE200

Camera

• Front camera: Yes
• Front camera HD type: HD
• Front camera resolution: 1280 x 720 pixels
• Front camera resolution (numeric): 0.92 MP
• Infrared (IR) camera: Yes
• Video capturing speed: 30 fps

Audio

• Built-in microphone: Yes
• Number of built-in speakers: 4
• Number of microphones: 2
• Speaker power: 2 W

Graphics

• Discrete graphics card: Yes
• Discrete graphics card memory: 6 GB
• Discrete graphics card model: NVIDIA RTX 1000 Ada
• Discrete graphics memory type: GDDR6
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc Graphics

Storage

• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
• Number of SSDs installed: 1
• NVMe: Yes
• Optical drive type: No
• SSD capacity: 1 TB GB
• SSD form factor: M.2
• SSD interface: PCI Express 4.0
• Storage media: SSD
• Total SSDs capacity: 1 TB GB
• Total storage capacity: 1 TB GB

Memory

• Internal memory: 16 GB
• Internal memory type: LPDDR5x-SDRAM
• Maximum internal memory: 16 GB
• Memory channels: Dual-channel
• Memory clock speed: 7467 MHz
• Memory data transfer rate: 7467 MT/s
• Memory form factor: On-board

Neural processor unit (NPU)

• AI datatype support on NPU: FP16, FP32, Int8
• AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML
• Maximum frequency NPU: 1.4 GHz
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes

Design

• Form factor: Clamshell
• Market positioning: Business
• Product colour: Grey
• Product type: Mobile workstation

Display

• Anti-glare screen: Yes
• Colour gamut: 100%
• Contrast ratio (typical): 1000:1
• Display brightness: 500 cd/m²
• Display diagonal: 35.6 cm (14")
• Display resolution: 1920 x 1200 pixels
• HD type: Full HD+
• LED backlight: Yes
• Maximum refresh rate: 60 Hz
• Native aspect ratio: 16:10
• Panel type: WVA
• Pixel density: 161 ppi
• RGB colour space: sRGB
• Touchscreen: No

Processor

• Efficient cores: 8
• Efficient-core base frequency: 0.9 GHz
• Efficient-core Max Turbo Frequency: 3.8 GHz
• Low Power Efficient-core Base Frequency: 700 MHz
• Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
• Low Power Efficient-cores: 2
• Maximum turbo power: 115 W
• Performance cores: 6
• Performance-core base frequency: 1.4 GHz
• Performance-core Max Turbo Frequency: 4.8 GHz
• Processor base power: 28 W
• Processor boost frequency: 4.8 GHz
• Processor cache: 24 MB
• Processor cache type: Smart Cache
• Processor cores: 16
• Processor family: Intel Core Ultra 7
• Processor generation: Intel® Core™ Ultra (Series 1)
• Processor manufacturer: Intel
• Processor model: 155H
• Processor threads: 22
