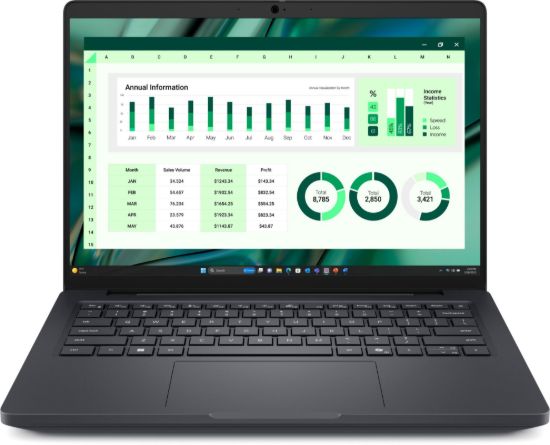

DELL Pro Max 14 - Intel Core Ultra 7 265H, RAM 16 GB, SSD 512 GB

General

• Units per Pallet: 0
• Summary: DELL Pro Max 14 MC14250. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 265H. Display diagonal: 35.6 cm (14"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Pro. Product colour: Black. Weight: 1.83 kg
• NB Family name: Pro Max

Packaging content

• AC adapter included: Yes

Weight & dimensions

• Depth: 227.3 mm
• Height (front): 1.48 cm mm
• Height (rear): 1.89 cm mm
• Weight: 1.83 kg
• Width: 313 mm

Sustainability

• Sustainability certificates: ENERGY STAR/EPEAT Climate +/EPEAT Gold

Operational conditions

• Non-operating altitude: -15.2 - 10668 m
• Non-operating shock: 160 G
• Non-operating vibration: 1.3 G
• Operating altitude: -15.2 - 3048 m
• Operating relative humidity (H-H): 10 - 90%
• Operating shock: 110 G
• Operating temperature (T-T): 0 - 35 °C
• Operating vibration: 0.66 G
• Storage relative humidity (H-H): 0 - 95%
• Storage temperature (T-T): -40 - 65 °C

Security

• Cable lock slot: Yes
• Cable lock slot type: Wedge
• Fingerprint reader: Yes
• Smart card reader: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Windows Hello: Yes

Power

• AC adapter frequency: 50/60 Hz
• AC adapter input voltage: 100 - 240 V
• AC adapter power: 130 W
• USB Power Delivery (USB PD): Yes
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 71 W
• USB Type-C required charging power (min): 45 W

Battery

• Battery capacity: 72 Wh
• Battery recharge time: 3 h
• Battery technology: Lithium Polymer (LiPo)
• Battery voltage: 15.6 V
• Battery weight: 270 g
• Fast charging: Yes
• Number of battery cells: 4

Brand-specific features

• Brand specific technologies: Control Vault 3+, Express Charge Boost capable

Software

• Operating system architecture: 64-bit
• Operating system installed: Windows 11 Pro

Keyboard

• Copilot key: Yes
• Keyboard backlit: Yes
• Keyboard language: Nordic
• Numeric keypad: No
• Pointing device: Touchpad

Performance

• Accelerometer: Yes
• Hall sensor: Yes
• Motherboard chipset: Intel SoC

Ports & interfaces

• Combo headphone/mic port: Yes
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Intel® Thunderbolt 4: Yes
• PowerShare: Yes
• Thunderbolt 4 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB Type-C DisplayPort Alternate Mode: Yes

Network

• Antenna type: 2x2
• Bluetooth: Yes
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000 Mbit/s
• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
• Wi-Fi data rate (max): 5760 Mbit/s
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 7 BE201

Camera

• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080 pixels
• Front camera resolution (numeric): 2.07 MP
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Video capturing speed: 30 fps

Audio

• Audio chip: Realtek ALC3329
• Audio system: MaxxAudio Pro
• Built-in microphone: Yes
• Number of built-in speakers: 2
• Number of microphones: 2
• Speaker power: 2 W
• Speakers manufacturer: Waves

Graphics

• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T

Storage

• M.2 SSD size: 2230 (22 x 30 mm)
• Number of SSDs installed: 1
• NVMe: Yes
• Optical drive type: No
• SSD capacity: 512 GB
• SSD form factor: M.2
• SSD interface: PCI Express 4.0
• SSD performance class: 35
• Storage media: SSD
• Total SSDs capacity: 512 GB
• Total storage capacity: 512 GB

Memory

• Internal memory: 16 GB
• Internal memory type: LPDDR5x-SDRAM
• Maximum internal memory: 64 GB
• Memory channels: Dual-channel
• Memory data transfer rate: 7467 MT/s
• Memory layout (slots x size): 1 x 16 GB
• Non-ECC: Yes

Neural processor unit (NPU)

• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• GPU performance up to: 75 TOPs
• Neural processor unit (NPU): Intel AI Boost
• NPU performance up to: 13 TOPs
• Sparsity support: Yes
• Total processor performance up to: 97 TOPs
• Windows Studio effects support: Yes

Design

• Form factor: Clamshell
• Product colour: Black
• Product type: Mobile workstation

Display

• Anti-glare screen: Yes
• Colour gamut: 45%
• Contrast ratio (typical): 800:1
• Display brightness: 300 cd/m²
• Display diagonal: 35.6 cm (14")
• Display resolution: 1920 x 1200 pixels
• Display response rise/fall: 35 ms
• HD type: Full HD+
• LED backlight: Yes
• Maximum refresh rate: 60 Hz
• Native aspect ratio: 16:10
• Panel type: WVA
• Pixel density: 162 ppi
• RGB colour space: NTSC
• Touchscreen: No

Processor

• Efficient cores: 8
• Efficient-core base frequency: 1.7 GHz
• Efficient-core Max Turbo Frequency: 4.5 GHz
• Low Power Efficient-core Base Frequency: 700 MHz
• Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
• Low Power Efficient-cores: 2
• Maximum turbo power: 115 W
• Performance cores: 6
• Performance-core base frequency: 2.2 GHz
• Performance-core Max Turbo Frequency: 5.3 GHz
• Processor base power: 28 W
• Processor boost frequency: 5.3 GHz
• Processor cache: 24 MB
• Processor cores: 16
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor manufacturer: Intel
• Processor model: 265H
• Processor threads: 16
