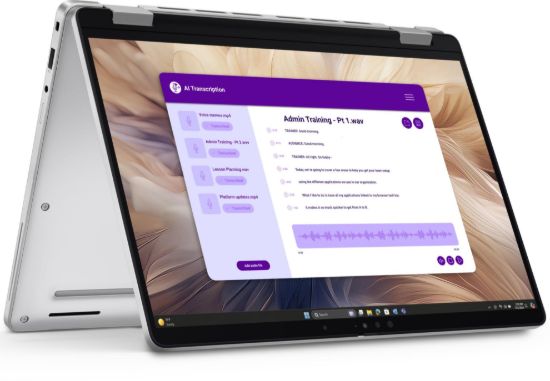

DELL Pro Plus Pro Plus 2-in-1 (PB14250) 14" - Core Ultra u5-235U, RAM 16GB, SSD 512GB, Intel Graphics

General

• Units per Pallet: 0
• Summary: DELL Pro 14 Plus PB14250 2-in-1. Product type: Hybrid (2-in-1), Form factor: Convertible (Folder). Processor family: Intel Core Ultra 5, Processor model: 235U. Display diagonal: 35.6 cm (14"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Pro. Product colour: Aluminium
• NB Family name: Pro Plus

Packaging content

• AC adapter included: Yes

Weight & dimensions

• Depth: 224 mm
• Height: 20.2 mm
• Height (front): 1.99 cm mm
• Height (rear): 2.02 cm mm
• Weight: 1.56 kg
• Width: 313.5 mm

Operational conditions

• Non-operating altitude: -15.2 - 10668 m
• Non-operating shock: 160 G
• Non-operating vibration: 1.3 G
• Operating altitude: -15.2 - 3048 m
• Operating relative humidity (H-H): 10 - 90%
• Operating shock: 110 G
• Operating temperature (T-T): 0 - 35 °C
• Operating vibration: 0.66 G
• Storage relative humidity (H-H): 0 - 95%
• Storage temperature (T-T): -40 - 65 °C

Security

• Cable lock slot: Yes
• Cable lock slot type: Wedge
• Fingerprint reader: Yes
• Smart card reader: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0

Power

• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• AC adapter power: 65 W
• USB charging voltage: 5,9,15,20 V
• USB Power Delivery (USB PD): Yes
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 72 W
• USB Type-C required charging power (min): 27 W

Battery

• Battery charge indicator: Yes
• Battery recharge time: 4 h
• Fast charging: Yes
• Number of battery cells: 3

Software

• Operating system architecture: 64-bit
• Operating system installed: Windows 11 Pro

Keyboard

• Keyboard backlit: Yes
• Numeric keypad: No
• Pointing device: Touchpad

Ports & interfaces

• Combo headphone/mic port: Yes
• HDMI ports quantity: 1
• HDMI version: 2.1
• Intel® Thunderbolt 4: Yes
• Number of USB ports with PowerShare support: 1
• PowerShare: Yes
• Thunderbolt 4 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB Type-C DisplayPort Alternate Mode: Yes

Network

• Antenna type: 2x2
• Bluetooth: Yes
• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211

Camera

• Front camera: Yes
• Front camera HD type: Quad HD
• Front camera resolution: 2560 x 1440 pixels
• Front camera resolution (numeric): 5.2 MP
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Video capturing speed: 30 fps

Audio

• Audio chip: Cirrus Logic CS42L43
• Built-in microphone: Yes
• Number of built-in speakers: 2
• Number of microphones: 2
• Speaker power: 2 W

Graphics

• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics

Storage

• Number of SSDs installed: 1
• NVMe: Yes
• Optical drive type: No
• SSD capacity: 512 GB
• SSD form factor: M.2
• SSD interface: PCI Express 4.0
• Storage media: SSD
• Total SSDs capacity: 512 GB
• Total storage capacity: 512 GB

Memory

• Internal memory: 16 GB
• Internal memory type: DDR5-SDRAM
• Maximum internal memory: 64 GB
• Memory data transfer rate: 5600 MT/s
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 16 GB
• Memory slots: 2x SO-DIMM

Neural processor unit (NPU)

• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
• Neural processor unit (NPU): Intel AI Boost
• NPU performance up to: 12 TOPs
• Sparsity support: Yes
• Windows Studio effects support: Yes

Design

• Form factor: Convertible (Folder)
• Housing material: Aluminium
• Intel® vPro™ Platform Eligibility: Yes
• Product colour: Aluminium
• Product type: Hybrid (2-in-1)
• Stylus pen support: Yes

Display

• Anti-reflective coating: Yes
• Colour gamut: 100%
• Contrast ratio (typical): 1000:1
• Display brightness: 300 cd/m²
• Display diagonal: 35.6 cm (14")
• Display resolution: 1920 x 1200 pixels
• Display technology marketing name: ComfortView Plus
• HD type: Full HD+
• Maximum refresh rate: 60 Hz
• Native aspect ratio: 16:10
• Panel type: IPS
• Pixel density: 162 ppi
• RGB colour space: sRGB
• Touchscreen: Yes

Processor

• Efficient cores: 8
• Efficient-core base frequency: 1.6 GHz
• Efficient-core Max Turbo Frequency: 4.1 GHz
• Low Power Efficient-core Base Frequency: 700 MHz
• Low Power Efficient-core Max Turbo Frequency: 2.4 GHz
• Low Power Efficient-cores: 2
• Maximum turbo power: 57 W
• Performance cores: 2
• Performance-core base frequency: 2 GHz
• Performance-core Max Turbo Frequency: 4.9 GHz
• Processor base power: 15 W
• Processor boost frequency: 4.9 GHz
• Processor cache: 12 MB
• Processor cores: 12
• Processor family: Intel Core Ultra 5
• Processor generation: Intel Core Ultra (Series 2)
• Processor manufacturer: Intel
• Processor model: 235U
• Processor threads: 14
