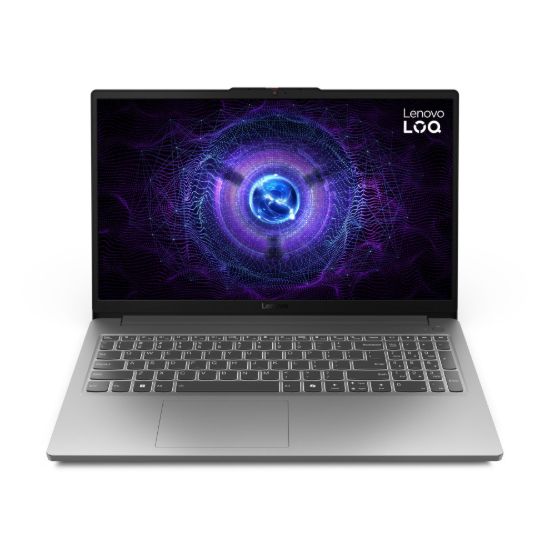

LENOVO LOQ 15IAX9E CPU Core i5 i5-12450HX 15.6" - RAM 16GB, SSD 512GB, NVIDIA GeForce RTX 2050 4GB

Packaging content

• AC adapter included: Yes

General

• Summary: Lenovo LOQ 15IAX9E. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i5, Processor model: i5-12450HX. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 2050. Product colour: Grey. Weight: 1.77 kg

Weight & dimensions

• Depth: 236 mm
• Height (front): 1.99 cm mm
• Height (rear): 2.29 cm mm
• Weight: 1.77 kg
• Width: 359.3 mm

Certificates

• Certification: ErP Lot 6/26 RoHS compliant
• Compliance certificates: RoHS

Operational conditions

• Maximum shipping altitude: 3048 m
• Operating relative humidity (H-H): 8 - 95%
• Operating temperature (T-T): 5 - 35 °C
• Storage relative humidity (H-H): 5 - 95%
• Storage temperature (T-T): 5 - 43 °C

Security

• Fingerprint reader: No
• Password protection: Yes
• Password protection type: BIOS, Power on, Supervisor
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0

Power

• AC adapter frequency: 50/60 Hz
• AC adapter input voltage: 100 - 240 V
• AC adapter power: 135 W
• USB Power Delivery (USB PD): No
• USB Type-C charging port: No

Battery

• Battery capacity: 57 Wh
• Battery technology: Lithium Polymer (LiPo)
• Continuous video playback time: 6 h
• Fast charging: Yes
• Fast charging time (50%): 30 min

Software

• Operating system installed: No

Keyboard

• Keyboard backlit: Yes
• Keyboard backlit colour: White
• Keyboard language: English
• Numeric keypad: Yes
• Pointing device: Touchpad

Performance

• Motherboard chipset: Intel HM670

Ports & interfaces

• Combo headphone/mic port: Yes
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Network

• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100,1000 Mbit/s
• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• WWAN: Not installed

Camera

• Front camera: Yes
• Front camera HD type: HD
• Front camera resolution: 1280 x 720 pixels
• Privacy camera: Yes
• Privacy type: Privacy shutter

Audio

• Audio chip: Realtek ALC3287
• Audio system: Nahimic Audio
• Built-in microphone: Yes
• Number of built-in speakers: 2
• Number of microphones: 2
• Speaker power: 2 W

Graphics

• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card memory: 4 GB
• Discrete graphics card model: NVIDIA GeForce RTX 2050
• Discrete graphics memory type: GDDR6
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel® UHD Graphics
• On-board graphics card model: Intel® UHD Graphics

Storage

• Card reader integrated: Yes
• Compatible memory cards: SD
• M.2 SSD size: 2242 (22 x 42 mm)
• Number of SSDs installed: 1
• NVMe: Yes
• Optical drive type: No
• SSD capacity: 512 GB
• SSD form factor: M.2
• SSD interface: PCI Express 4.0
• Storage media: SSD
• Total SSDs capacity: 512 GB
• Total storage capacity: 512 GB

Memory

• Internal memory: 16 GB
• Internal memory type: DDR5-SDRAM
• Maximum internal memory: 32 GB
• Memory clock speed: 4800 MHz
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 16 GB
• Memory slots: 1x SO-DIMM

Design

• Colour name: Luna Grey
• Form factor: Clamshell
• Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
• Product colour: Grey
• Product type: Laptop

Display

• Anti-glare screen: Yes
• Colour gamut: 100%
• Contrast ratio (typical): 1000:1
• Display brightness: 300 cd/m²
• Display diagonal: 39.6 cm (15.6")
• Display resolution: 1920 x 1080 pixels
• HD type: Full HD
• LED backlight: Yes
• Maximum refresh rate: 144 Hz
• Native aspect ratio: 16:9
• Panel type: IPS
• RGB colour space: sRGB
• Touchscreen: No

Processor

• Efficient cores: 4
• Efficient-core Max Turbo Frequency: 3.1 GHz
• Maximum turbo power: 157 W
• Performance cores: 4
• Performance-core Max Turbo Frequency: 4.4 GHz
• Processor base power: 55 W
• Processor boost frequency: 4.4 GHz
• Processor cache: 12 MB
• Processor cache type: Smart Cache
• Processor cores: 8
• Processor family: Intel® Core™ i5
• Processor generation: 12th gen Intel® Core™ i5
• Processor manufacturer: Intel
• Processor model: i5-12450HX
• Processor threads: 12
